Refrigeration and Air Conditioning
Computerized Ice Plant Test Rig (10 KGS/Day)
(Product Code: RACC01)
Product Description

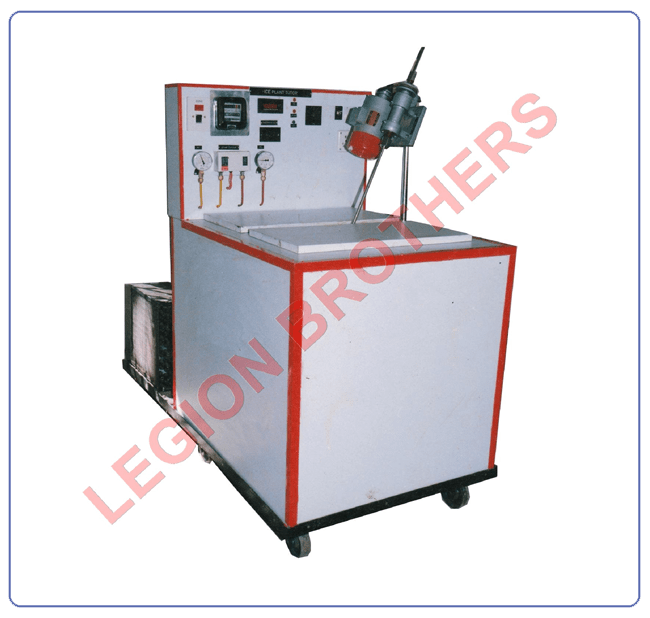

This test rig is used to great advantage when introducing students to the Vapour compression refrigeration cycle for making ice with brine. The test rig is portable trolley mounted, hosed on a MS frame angle with front panel consists of all the necessary instruments and components like voltmeter, ammeter, temperature indicator, energy meter, pressure/compound gauges, and LP/HP cutout.
The ice plant consists of a MS tank with fiber glass-coated in the interior surface & copper coils of 12mm Dia, which forms the evaporator.
The outer of MS tank is coated with bitumen & insulated with thermo coal and placed in a wooden box and finished with laminated sheets.
The unit is fitted with a flow diagram that illustrates the constructional and operational features. The compressor is suitably located with the condenser, condenser fan motor and Rota meter. Electrical stirrer is provided to stir the brine solution in the icebox. G.I ice cans are provided along with the machine.
Computerized Re-Circulating Type Air Conditioner Trainer
(Product Code: RACC02)
Product Description
This machine simulates both industrial and domestic air conditioning practice and includes variable temperature and humidity control systems. Students can investigates and evaluate all the effects likely to be met in an air conditioning plant.

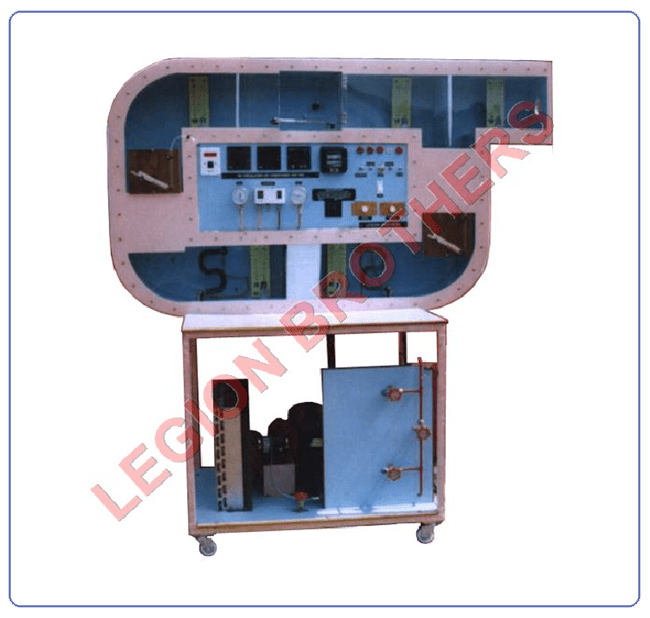

The test rig is portable trolley mounted, hosed on a MS frame tube with front panel, surrounded by a transparent “c” duct were the air is allowed to re-circulate. Wet & dry bulbs are provided at suitable points inside the duct. The evaporator is air-cooled type, which is placed inside the duct.
A small steam generation unit is provided for humidification and cooling provided for de-humidification. The panel consists of all the necessary instruments and components like voltmeter, ammeter, and temperature inductor energy meter Rota meter, pressure/compound gauges, and LP/HP cutout. The unit is fitted with a flow diagram that illustrates the constructional and operational features.
Computerized Vapour Absorption Refrigeration Test Rig
(Product Code: RACC03)
Product Description
This test rig is used to great advantage when introducing students to the Vapour absorption refrigeration cycle. The Vapour absorption refrigeration system is an Electrolux make, it resembles to a mini household refrigerator. The Vapour absorption system used in the rig consists of generator, condenser, evaporator, absorber and a heater, which is all in a sealed unit therefore; the pressure and the flow rate of ammonia inside the circuit cannot be measured.
The test rig is portable trolley mounted, hosed on a MS frame tube with wooden platform & front panel, finished by lamination to give elegant finish. The panel consists of all the necessary instruments like voltmeter, ammeter, and temperature inductor.
Required temperature at generator, condenser, evaporator, absorber & heater are measured. The power consumed by the unit is measured using a digital voltmeter & ammeter.
Computerized Vapour Compression Refrigeration Test Rig
(Product Code: RACC04)
Product Description

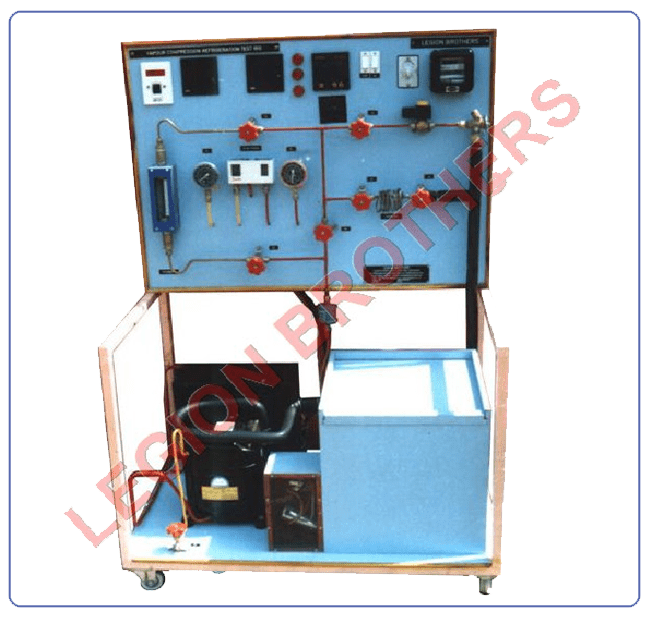

This test rig is used to great advantage when introducing students to the Vapour compression refrigeration cycle. The test rig is portable trolley mounted, hosed on a MS frame tube with wooden platform & front panel, finished by lamination to give elegant finish.
The panel consists of all the necessary instruments and components like voltmeter, ammeter, and temperature inductor energy meter Rota meter, thermostatic expansion valve, solenoid valve, pressure/compound gauges, and LP/HP cutout, the platform consists of compressor, fan, condenser and the evaporator is made of copper coil wrapped around a stainless steel vessel and insulated and housed in a wooden chamber.
Computerized Window Air Conditioner Trainer
(Product Code: RACC05)
Product Description

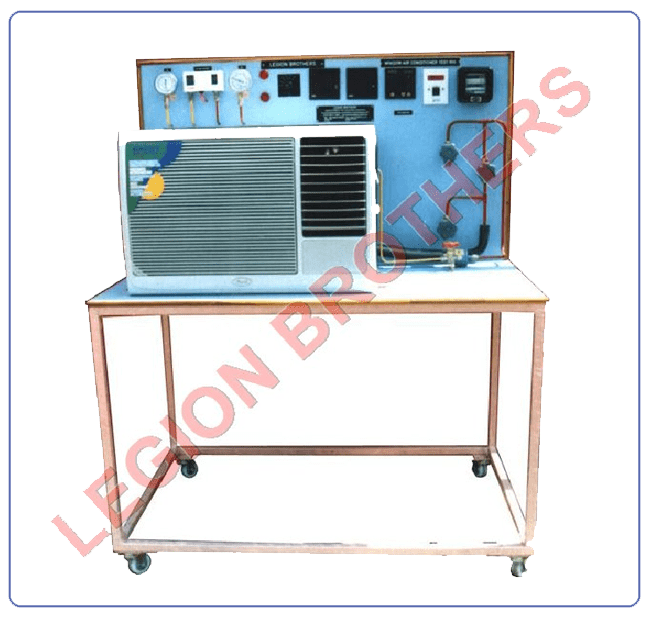

This test rig is used to great advantage when introducing students to the air conditioning system. The test rig is portable trolley mounted, hosed on a MS frame tube with wooden platform & front panel, finished by lamination to give elegant finish.
The panel consists of all the necessary instruments and components like voltmeter, ammeter, and temperature inductor energy meter Rota meter, pressure/compound gauges, and LP/HP cutout.
The unit is fitted with a flow diagram that illustrates the constructional and operational features. The platform consists of compressor, fan, condenser; evaporator and an expansion device enclosed in a window AC kit.
